Mobile Phone Controlled PODdevices™
|
by Matthew Ford 12th December 2010
© Forward
Computing and Control Pty. Ltd. NSW Australia
All rights reserved.
Part 1 of the tutorial introduced PODdevices™ and the covered the specification of the operation discovery protocol. Part 2 of this tutorial covered the mobile phone PODapp. This part of the tutorial covers the messages the Led Controller will send and receive as a PODdevice. As a PODdevice, the Led Controller will advertise its functionality to the PODapp™ and let the user control the Led. For the Led Controller this functionality will include turning the Led on and off, fading the led on and fading it off, increasing and decreasing the brightness and two sub-menus, one to set specific levels, High, Med, Low and another to display the current level setting and led current.
The first step is to design the messages the Led Controller is going to use to advertise it functions. The messages will be tested against the Mobile Phone PODapp™ to see how they will appear to the user, before coding them in the Led Controller.
Start by connection the Mobile Phone PODapp™ to a terminal emulator on your PC (see Connecting the PODapp™ To TeraTerm ). On connection the PODapp™ automatically sends the getMainMenu message, {.}. The Led Controller PODdevice™ should respond to this with its main menu of functionality. In this case we will advertise the following navigation commands, fade on, brighter and one sub-menu. A place holder command d is also sent so we can update this naviagation menu later. (Note: The PC connection in the PODapp™ has 0 character timeout so the PODapp™ will wait indefinitely for you to enter your response. However when connecting to the real PODdevice, Led Controller needs to respond within its timeout settings. See the POD specification for details)
Following the POD
specification we assign command characters to these menu items, o
for on/off, f for
fade up/down, u
for up, d
for down, l
for Set Level sub-menu, a
for Data submenu.
{^Led
Control||m~menu|u~Brighter|d|f~Fade On}

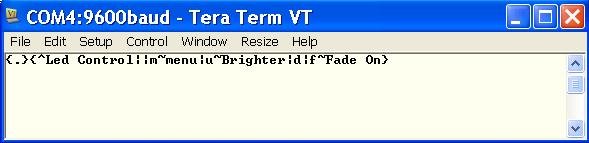

Entering
this message into the terminal window sends it to the MobilePhone
PODapp. (Hint: type the message into notepad first, get it correct
and then cut and paste it into the terminal window)
On
receiving this main menu, the PODapp™ displays it.
The
POD specification also allows for sending an optional menu title
which has been done here. If the menu title is not sent by the
PODdevice, the PODapp™ to should display something suitable.
The PODapp™ provide in this tutorial will display the device
name for the main menu title.
When the user sends the Fade On command, the PODapp™ sends the message {f}. The Led Controller then should turn the Led on and send back a menu update that changes the Fade On display to Fade Off so the user can toggle the Led on and off using the same menu item. When the led is on the Darker display shown so the menu update also needs to be include the display text for the d command in the Led Controller's response.
Following the POD
specification for menu updates, the Led Controller needs to send back
display updates for the o and
f commands.

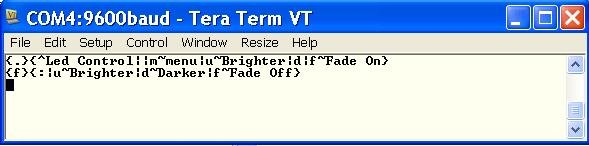

{:|u~Brighter|d~Darker|f~Fade
Off}
The
PODapp™ now displays
Sending the Brighter or Darker menu items send the messages {u} and {d} respectively to the Led Controller to increase or decrease the led brightness and update the menu depending on whether or not the maximum brightness has been reached or the led has been turned off.

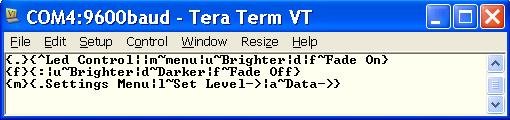

The > menu item sends the message {m} and the Led Controller responds with the sub-menu.
The PODapp™ displays
This
menu has two further sub-menus, Set Level and Data
Choosing the Set
Level item displays sends the message {l} to
the PODdevice™ which responds with the
menu
{.|1~Low|2~Medium|3~High|0~Off}
This
menu message did not include a menu title and it was left to the
PODapp™ to set something appropriate. This PODapp™ uses
the display name of the command sent as the menu title, i.e Set Level
->

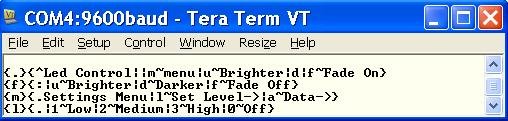

Each of these menu items send the associated command when selected. That is Low sends {1}, Medium sends {2}, High send {3} and Off sends {0}. The Led Controller sets the corresponding led level and since there is no update needed for this menu, the Led Controller just sends back an empty command, {}, to let the PODapp™ know it has received and processed the command. For example
The PODapp™ has a refresh button that can be used to re-request the current menu
In this case it the PODapp™ resends {l} to re-request the Set Level sub-menu and the Led Controller responds with the Set Level menu as before.
The
PODapp™ also has a <- Back button
to go back to the previous menu. The PODapp™ does this by
re-requesting the previous menu from the PODdevice. In this case to
choosing <- Back sends
{m} to
the Led Controller to re-request the previous menu.

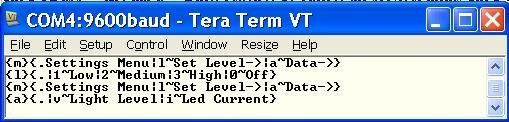

Selecting the Data-> menu item sends {a} to the Led Controller which responds with the Data sub-menu. This menu contains two items Light Level and Led Current with associated commands v and i
The
PODapp™ displays

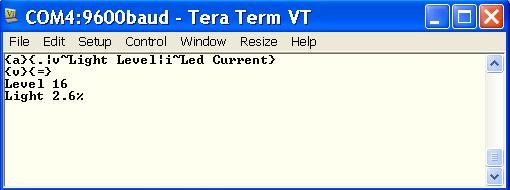

Selecting Light Level sends the message, {v}, to the Led Controller. The Led Controller responds with a streaming raw data message {=} and then sends the present value of the level and the % setpoint.
The
PODapp™ displays a streaming raw data screen with the data sent
by the Led Controller.
The
Led Controller can continue to send as much raw data as it likes,
although the PODapp™ may need to discard old data to make room
for the newer data.
Going back to the Data menu and selecting the Led Current menu item sends the message {i} and the Led Controller responds with the same streaming raw data message, {=}, but this time follows it with the % Led current reading.
Pressing
Refresh re-sends the last command to the Led Controller and the Led
Controller responds with the present Led Current reading.
That completes the commands that will be supported by the Led Controller PODdevice. The next section will cover the modifications needed to the existing Mobile Phone controlled Led Driver to make it a PODdevice™ that provides these functions.
PODdevice™ and PODapp™ are trade marks of Forward Computing and Control Pty. Ltd.
